510 SERIES REMOTE CONTROL FLOATING VALVE

        Remote Control Float Ball Valve has two types, Piston type from DN20~DN500, diaphragm type from DN600~DN800.
       Remote control float valve is composed by the main valve, needle valve, ball valve, floating ball valve, micro-filter, etc.It is mounted in the inlet pipeline of pond or water tower. When the pond water reaches the preset level, the valve will shut automatically; When the water level falls, it will open automatically to start feeding water. The valve maintains the maximum water level of tank or reservoir continuously.

       This valve can be widely used in influent pipes of the pools and water tower in high-rise buildings,municipal domestic water systems, factories and mines.

Technical Specification/技术规格

- Size/规格：DN20-DN800
- Diaphragm type/隔膜式：DN20-DN500；
- Piston type/活塞式：DN600-DN800
- End/连接法兰：ISO PN6/10/16
- Work Pressure/工作压力：PN10/PN16
- Work Temperature/工作温度：0℃～80℃

Structure Character/结构特点

- Small volume, light weight, easy installation and maintenance.
- Full Bore Design, low fluid resistance and large flow, full tightness.
- It operates by utilizing the hydraulic power to control the liquid level of water tower or pond automatically with a high control accuracy of liquid level.
- Direct use of remote level control float valve, no other devices and energy, accurate liquid level control.
- Free from pressure effects and reliable sealing,

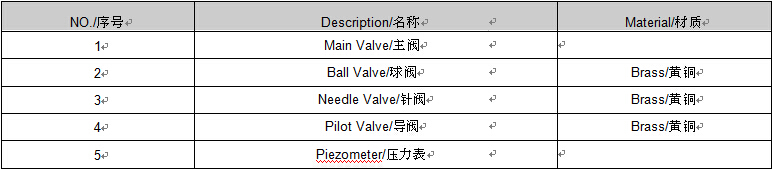

Main Components and Materials/主要零件和材质

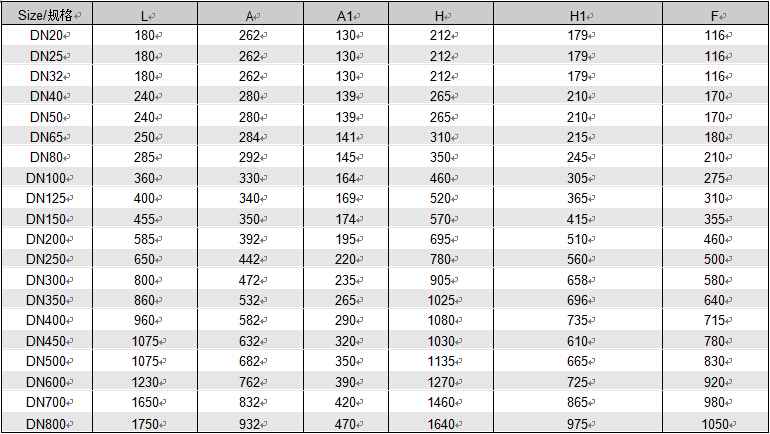

Dimensions/尺寸
