EXPANSION JOINTupdate锛2014-07-07Browse锛 |
Product introduction
Technical Specification/鎶鏈鏍
- Size/瑙勬牸锛欴N65-DN3600
- End/杩炴帴娉曞叞锛欼SO PN6/10
- Work pressure/宸ヤ綔鍘嬪姏锛歅N6/PN10
- Work temperature/宸ヤ綔娓╁害锛0鈩冿綖80鈩
Structure Character/缁撴瀯鐗圭偣
- Limit expansion joint is composed by body, sealing ring and limited short pine, etc.
- It is able to extend and compress in some extent to fit pipeline dimension and it can absorb axial displacement due to pipeline expansion and contraction, and lateral displacement and pipeline angularity.
- Limit expansion joint provides great convenience to the detachment and installation of valve and pipe.

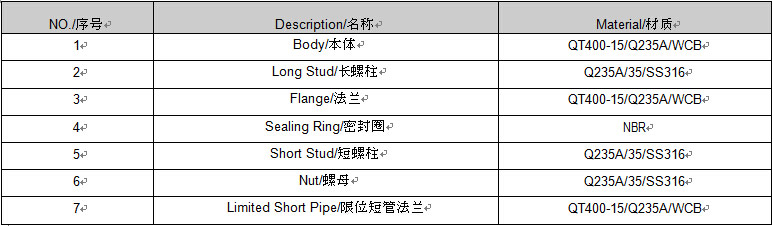

Main Components and Materials/涓昏闆朵欢鍜屾潗璐

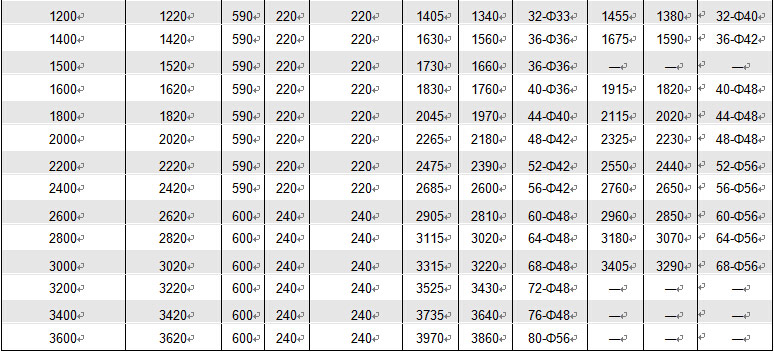

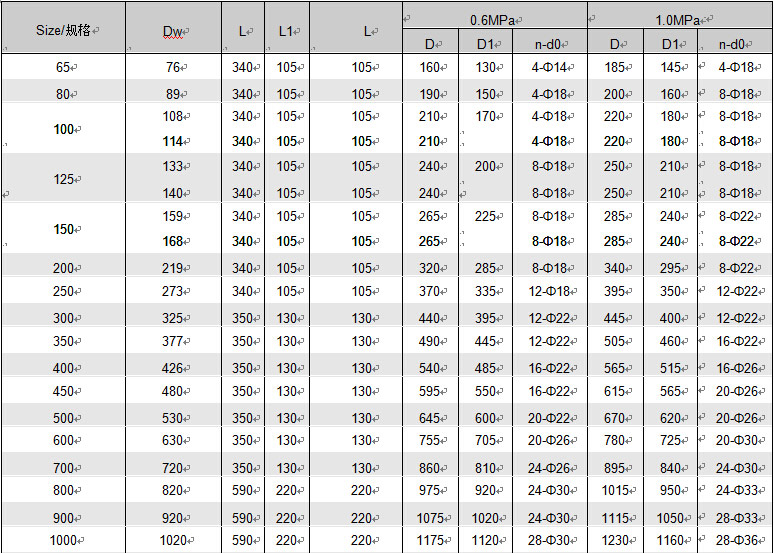

Dimensions/灏哄
