530 SERIES SLOW SHUT CHECK VALVEupdate锛2014-07-07Browse锛 |
Product introduction
Slow shut check valve is composed by the main valve, Non-returning valve, needle valve, ball valve and piezometer, etc.
This valve is used to adjust the speed of opening and closing, prevent medium reflux, and automatically control the speed of open and shut of water pump.
Slow shut check valve has two types, Diaphragm type from DN20~DN500, piston type from DN600~DN800. This valve can be widely used in influent pipelines in high-rise buildings, Industries water supply system.
- Adjust the speed of opening and closing, prevent medium reflux. Ensuring safety operation of the line network.
This valve is used to adjust the speed of opening and closing, prevent medium reflux, and automatically control the speed of open and shut of water pump.
Slow shut check valve has two types, Diaphragm type from DN20~DN500, piston type from DN600~DN800. This valve can be widely used in influent pipelines in high-rise buildings, Industries water supply system.
Valve is installed at the water pump outlet of the water supply. It eliminate devastating water hammer, effectively reduce water hammer pressure due to shutoff of valve, ensuring safety operation of the line network.
Technical Specification/鎶鏈鏍
- Size/瑙勬牸锛欴N20-DN800
- Diaphragm type/闅旇啘寮忥細DN20-DN500锛
- Piston type/娲诲寮忥細DN600-DN800
- End/杩炴帴娉曞叞锛欼SO PN6/10/16
- Work Pressure/宸ヤ綔鍘嬪姏锛歅N10/PN16
- Work Temperature/宸ヤ綔娓╁害锛0鈩冿綖80鈩
Structure Character/缁撴瀯鐗圭偣
- Slow shut check valve is composed by the main valve, Non-returning valve, needle valve, ball valve and piezometer, etc.- Adjust the speed of opening and closing, prevent medium reflux. Ensuring safety operation of the line network.

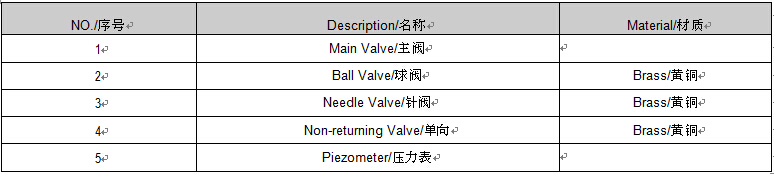

Main Components and Materials/涓昏闆朵欢鍜屾潗璐

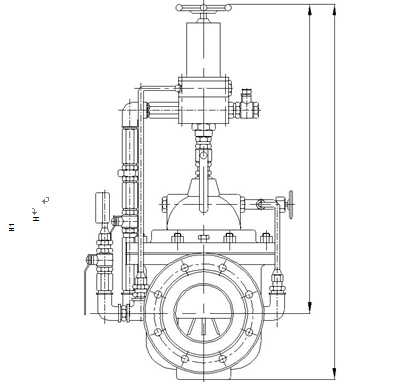

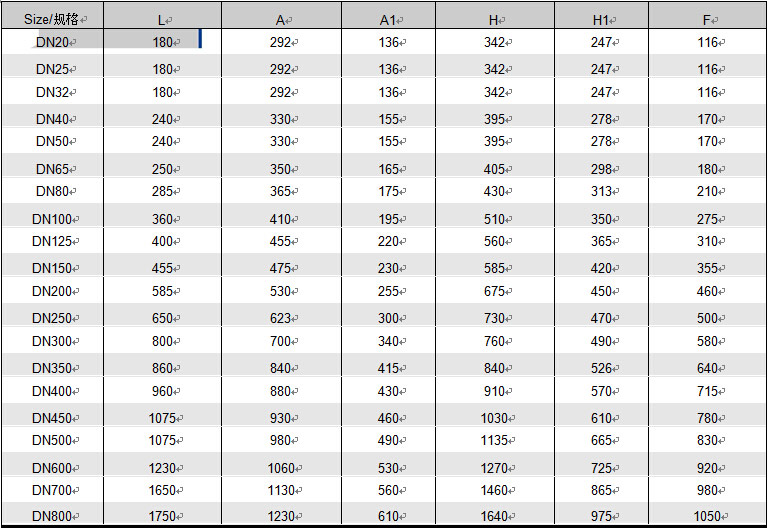

Dimensions/灏哄
