404 SERIES SWING CHECK VALVEupdate锛2014-07-07Browse锛 |
Product introduction
Technical Specification/鎶鏈鏍
- Size/瑙勬牸锛欴N50-DN600
- End/杩炴帴娉曞叞锛欼SO PN6/10/16
- Face to Face/缁撴瀯闀垮害锛欴IN 3202 F6 BS5153
- Work Pressure/宸ヤ綔鍘嬪姏锛歅N16 DN50-DN400 PN10 DN450-DN600
- Work Temperature/宸ヤ綔娓╁害锛-20鈩冿綖100鈩
Structure Character/缁撴瀯鐗圭偣
- Full Bore Design
low fluid resistance and perfect Kv value
- Bolted Bonnet
Easy to assembly and disassembly.
- Easy to Installation
Suitable in horizontal and vertical direction installation

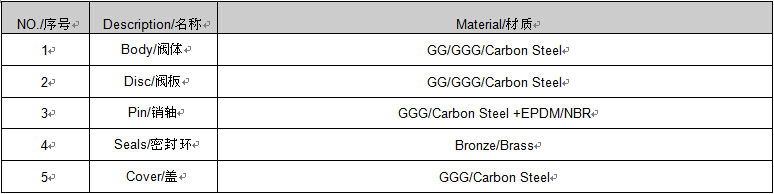

Main Components and Materials/涓昏闆朵欢鍜屾潗璐

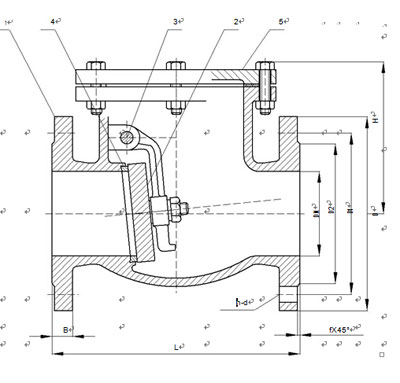

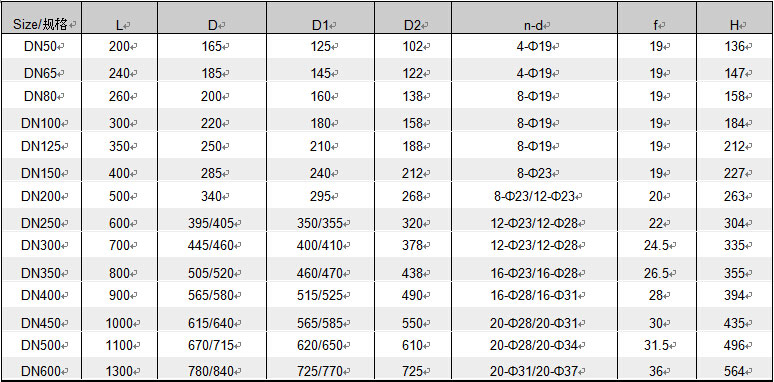

Dimensions/灏哄
