460 SERIES TINY DRAG SLOW SHUT CHECK VALVE

Technical Specification/技术规格

- Size/规格：DN50-DN800
- End/连接法兰：ISO PN6/10/16
- Work Pressure/工作压力：PN10/PN16
- Work Temperature工作温度：-20℃～80℃

Structure Character/结构特点

- light flap, high opening.
- Low fluid resistance, perfect Kv value; full tightness, Zero leakage.
- Stable performance, without vibration and noise, low water hammer pressure.
- Suitable in horizontal and vertical direction installation, easy installation.

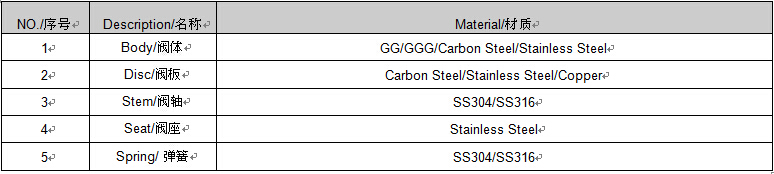

Main Components and Materials/主要零件和材质

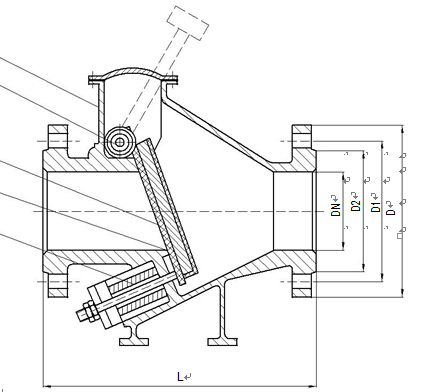

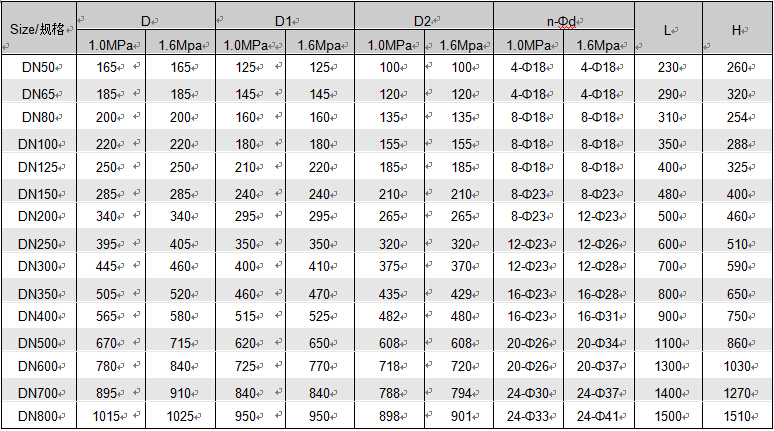

Dimensions/尺寸
