560 SERIES MULTI-FUNCTIONAL PUMP CONTROL VALVEupdate锛2014-07-07Browse锛 |
Product introduction
Multi-functional pump control valve is composed by the main valve,Regulating valve and strainer, etc.
It functions as globe valve, check valve, electric valve at the water pump outlet of the water supply system in high-rise buildings, Industries and mines. Particularly suitable for supporting pumping station automatic control system. No need for electric or pneumatic actuator or external motivity.
It functions as globe valve, check valve, electric valve at the water pump outlet of the water supply system in high-rise buildings, Industries and mines. Particularly suitable for supporting pumping station automatic control system. No need for electric or pneumatic actuator or external motivity.
It effectively improves security of water supply system and achieve automatic control system requirements.
Technical Specification
- Size/瑙勬牸锛欴N40-DN800
- Diaphragm type/闅旇啘寮忥細DN20-DN500锛
- Piston type/娲诲寮忥細DN600-DN800
- End/杩炴帴娉曞叞锛欼SO PN6/10/16
- Work Pressure/宸ヤ綔鍘嬪姏锛歅N10/PN16
- Work Temperature/宸ヤ綔娓╁害锛0鈩冿綖80鈩
Structure Character/缁撴瀯鐗圭偣
- When pump start up, the valve automatically open and when pump close, the valve adjust the speed of opening and closing, devastating water hammer, particularly suitable for supporting pumping station automatic control system.
- Full tightness, no noise.
- Easy installation and maintenance.

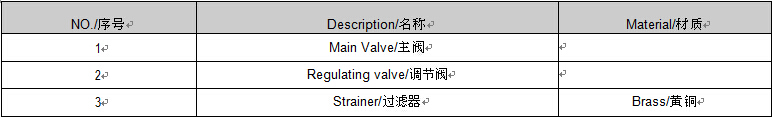

Main Components and Materials/涓昏闆朵欢鍜屾潗璐

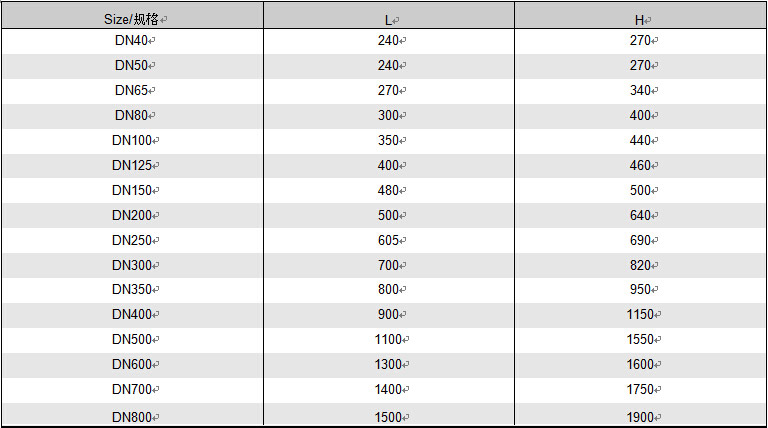

Dimensions/灏哄
