440 SERIES FULL LINED DUAL PLATE CHECK VALVEupdate锛2014-07-07Browse锛 |
Technical Specification/鎶鏈鏍
- Size/瑙勬牸锛欴N50-DN600
- End/杩炴帴娉曞叞锛欼SO PN6/10/16
- Work Pressure/宸ヤ綔鍘嬪姏锛歅N16 DN50-DN400 PN10 DN450-DN800
- Work Temperature/宸ヤ綔娓╁害锛-20鈩冿綖100鈩
Structure Character/缁撴瀯鐗圭偣
- Small size, light weight, compact structure, easy maintenance;
- Medium is not in contact with the body, to ensure they are able to work in corrosive media;
- Using dual-spring design, the load force evenly distributed to each plate, the valve can be closed quickly when the Media reflux;
- Using shaft fastening screws, effectively preventing shaft runout, avoid valves failures and shaft leaks;
- Completely sealed, zero leakage pressure test;
- Suitable for a variety of media;

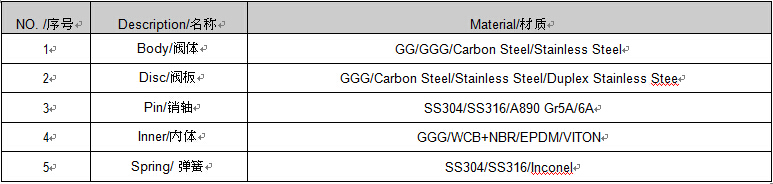

Main Components and Materials/涓昏闆朵欢鍜屾潗璐

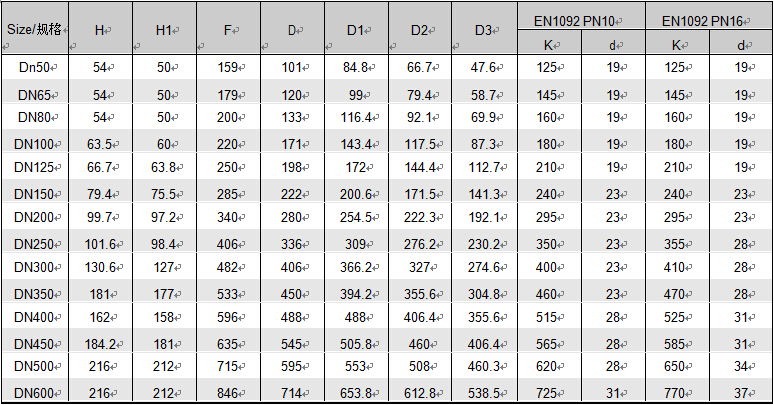

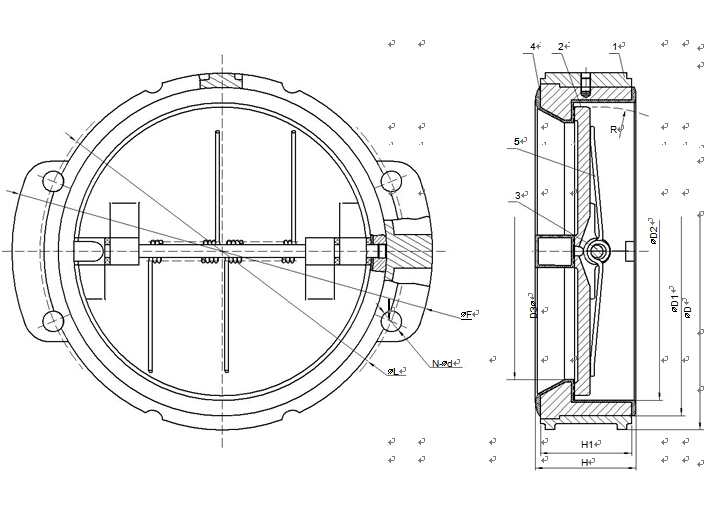

Dimensions/灏哄
