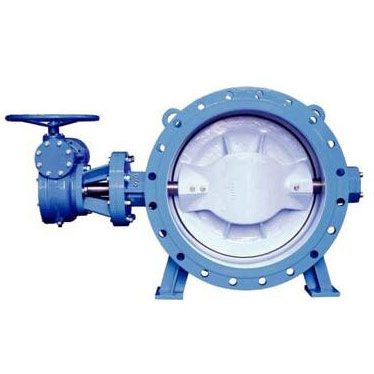

910 SERIES DOUBLE EXCENTRIC BUTTERFLY VALVEupdate锛2014-07-07Browse锛 |
Product introduction
Technical Specification/鎶鏈鏍
- Size/瑙勬牸锛欴N100-DN2000
- Design/璁捐鏍囧噯锛欱S5155- End/杩炴帴娉曞叞锛歅N6/10/16/ANSI150
- Top Flange/椤舵硶鍏帮細ISO5211
- Face to Face/缁撴瀯闀垮害锛欼SO5752-13/14
- Work Pressure/宸ヤ綔鍘嬪姏锛歅N6/PN10/PN16
- Work Temperature/宸ヤ綔娓╁害锛 NBR-26鈩冿綖80鈩 EPDM-26鈩冿綖120鈩 VITON-30鈩冿綖160鈩
Structure Character/缁撴瀯鐗圭偣
- Perfect design, Integrated structure, easy assembly and disassembly, convenient maintenance.
- Eccentric structure eliminates the abrasion and prolong life cycling.
- Apply "T" design of disc sealing ring. The sealing pair is linear sealing.
- Full tightness, Zero leakage.
- Different material for different working medium and temperature.

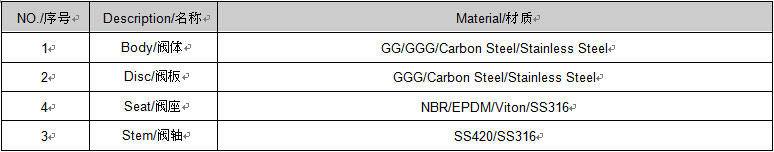

Main Components and Materials/涓昏闆朵欢鍜屾潗璐

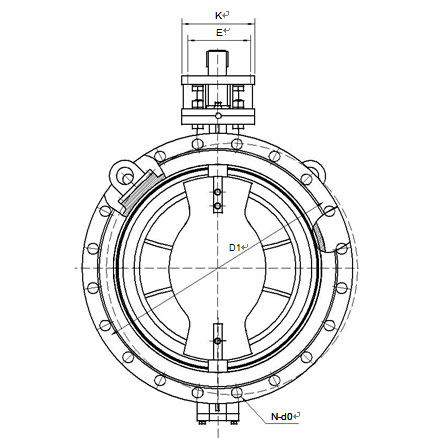

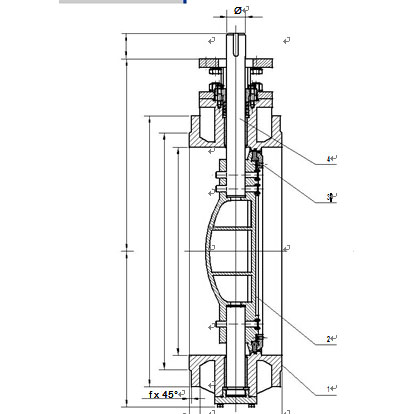

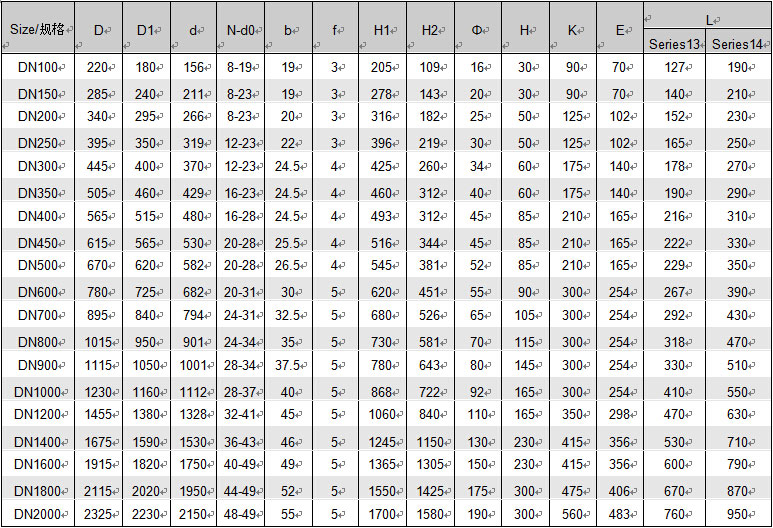

Dimensions/灏哄
