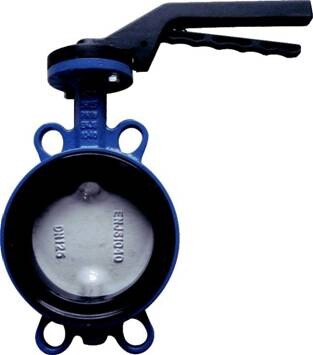

9 5 0 系 列 对 夹 式 蝶 阀更新：2014-07-03浏览： |
Technical Specification/技术规格
- Size/规格：DN40-DN1200 - Design/设计标准：DIN3354
- End/连接法兰：PN6/10/16/ANSI150 - Top Flange/顶法兰：ISO5211
- Face to Face/结构长度：ISO5752-20/API609 - Work Pressure/工作压力：PN6/PN10/PN16
- Work Temperature/工作温度：NBR-26℃～80℃ EPDM-26℃～120℃ FM-30℃～160℃
Structure Character/结构特点
|
- Stem keeping in position by circlips |
- 无销、阀杆依靠卡圈限位 |
|
- Operated by lever or gearbox |
- 通过手柄或齿轮箱操作 |
|
- Spherical machining disc for a perfect tightness |
- 球形阀板保证密封 |
|
- Seat extension around stem for a perfect tightness |
- 阀座轴端增厚保证密封 |
|
- Epoxy coating on body |
- 阀体内外环氧树脂喷涂 |
Main Components and Materials/主要零件和材质
|
NO./序号 |
Description/名称 |
Material/材质 |
|
1 |
Body/阀体 |
GG/GGG/Carbon Steel/Stainless Steel |
|
|
|
|
|
2 |
Disc/阀板 |
GGG/Monel/Bronze/CF8M/CF8/Duplex Stainless Steel |
|
|
|
|
|
3 |
Seat/阀座 |
NBR/EPDM/Viton/Silicone Rubber/PTFE |
|
|
|
|
|
4 |
Stem/阀轴 |
SS420/SS316 |
|
|
|
|
Dimensions/尺寸
|
Size/规格 |
A |
B |
C |
D |
H |
L |
F |
G |
ΦI |
4-ΦK |
ΦJ |
Top Flange/上法兰 |
|
|
DN40 |
109 |
55 |
33 |
74 |
176 |
194 |
12 |
9 |
50 |
7 |
65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DN50 |
114 |
60 |
43 |
92 |
181 |
194 |
12 |
9 |
50 |
7 |
65 |
|
|
|
DN65 |
130 |
67 |
46 |
108 |
197 |
194 |
12 |
9 |
50 |
7 |
65 |
F05 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DN80 |
140.5 |
78 |
46 |
121 |
207.5 |
194 |
16 |
11 |
50 |
7 |
65 |
|
|
|
DN100 |
153 |
88 |
52 |
145 |
220 |
194 |
16 |
11 |
50 |
7 |
65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DN125 |
172 |
102 |
56 |
173 |
249 |
244 |
19 |
14 |
70 |
9 |
90 |
|
|
|
DN150 |
185 |
117.5 |
56 |
208 |
262 |
244 |
19 |
14 |
70 |
9 |
90 |
F07 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DN200 |
221 |
150 |
60 |
251 |
291 |
329 |
24 |
17 |
70 |
9 |
90 |
|
|
|
DN250 |
257.5 |
180 |
68 |
306 |
354.5 |
404 |
24 |
22 |
102 |
11 |
125 |
F10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DN300 |
290 |
219 |
78 |
365 |
387 |
404 |
24 |
22 |
102 |
11 |
125 |
|
|
|
|
|
||||||||||||
|
DN350 |
315 |
250 |
78 |
412 |
- |
- |
32 |
27 |
125 |
14 |
150 |
F12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DN400 |
355 |
275 |
102 |
480 |
- |
- |
32 |
27 |
125 |
14 |
150 |
|
|
|
|
|
